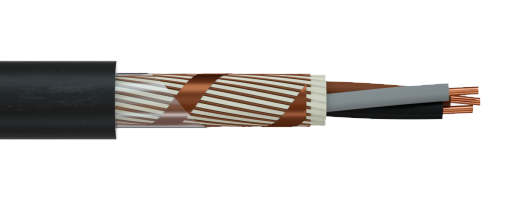

NYCY
The NYCY cable is a versatile and robust solution for indoor and outdoor use, suitable for installation in cable ducts, plaster, brickwork, and underground. Ideal for power plants, industrial facilities, local power networks, and as a control cable, it offers exceptional mechanical and electrical protection. With a UV and water-resistant oversheath and compliance with VDE German standards, the NYCY cable ensures reliable performance in diverse environments.
Properties
- Outdoor use
- UV-resistant
- CPR Eca
Construction & Technical data
|
Conductor material |
Copper, bare |
|
Conductor construction |
Class 1, from 25 sqmm class 2 |
|
Insulation |
PVC |
|
Core identification |
Colors acc. to HD 308 |
|
Concentric conducor (PE) |
Cu |
|
Sheathing material |
PVC |
|
Colour of outer sheath |
Black |
|
Flame-retardant |
IEC 60332-1-2 |
|
CPR-classification according to EN 50575 |
Eca |
|
UV-resistant |
yes |
|
Max. temperature at conductor, °C |
70 °C |
|
Permitted outer cable temperature, fixed |
70 °C |
|
Permitted outer cable temperature, moved |
-5 - +70 °C |
Cable sizes
 |
NYCY |
|
Size |
Outer |
Tensile |
|
|
|
|
1 x 6/6 |
RE |
10,2 |
300 |
125 |
201 |
|
2 x 1.5/1.5 |
RE |
13,0 |
150 |
52 |
200 |
|
2 x 2.5/2.5 |
RE |
13,6 |
250 |
80 |
260 |
|
2 x 4/4 |
RE |
15,4 |
400 |
123 |
350 |
|
2 x 6/6 |
RE |
16,9 |
600 |
182 |
430 |
|
2 x 10/10 |
RE |
18,5 |
1000 |
312 |
520 |
|
2 x 16/16 |
RE |
20,5 |
1600 |
489 |
720 |
|
3 x 1.5/1.5 |
RE |
13,2 |
225 |
66 |
220 |
|
3 x 2.5/2.5 |
RE |
14,2 |
375 |
104 |
280 |
|
3 x 2.5/10 |
RE |
14,4 |
375 |
192 |
359 |
|
3 x 4/4 |
RE |
16,3 |
600 |
161 |
390 |
|
3 x 6/6 |
RE |
17,3 |
900 |
240 |
500 |
|
3 x 10/10 |
RE |
20,0 |
1500 |
408 |
680 |
|
3 x 16/16 |
RE |
23,0 |
2400 |
643 |
1010 |
|
4 x 1.5/1.5 |
RE |
14,2 |
300 |
81 |
250 |
|
4 x 2.5/2.5 |
RE |
15,3 |
500 |
128 |
340 |
|
4 x 4/4 |
RE |
17,3 |
800 |
200 |
460 |
|
4 x 6/6 |
RE |
18,4 |
1200 |
297 |
580 |
|
4 x 10/10 |
RE |
21,0 |
2000 |
504 |
765 |
|
4 x 16/16 |
RE |
23,0 |
3200 |
796 |
1060 |
|
5 x 1.5/1.5 |
RE |
15,0 |
375 |
95 |
330 |
|
5 x 2.5/2.5 |
RE |
16,0 |
625 |
152 |
400 |
|
5 x 4/4 |
RE |
19,0 |
1000 |
238 |
550 |
|
5 x 6/6 |
RE |
21,0 |
1500 |
355 |
700 |
|
7 x 1.5/2.5 |
RE |
15,3 |
525 |
133 |
350 |
|
7 x 2.5/2.5 |
RE |
17,4 |
875 |
200 |
450 |
|
7 x 4/4 |
RE |
20,0 |
1400 |
315 |
600 |
|
7 x 10/10 |
RE |
25,0 |
3500 |
792 |
1320 |
|
7 x 6/6 |
RE |
22,5 |
2100 |
470 |
790 |
|
10 x 1.5/2.5 |
RE |
18,4 |
750 |
176 |
410 |
|
10 x 2.5/4 |
RE |
20,4 |
1250 |
286 |
600 |
|
10 x 4/6 |
RE |
23,5 |
2000 |
451 |
900 |
|
12 x 1.5/2.5 |
RE |
19,4 |
900 |
205 |
470 |
|
12 x 2.5/4 |
RE |
20,5 |
1500 |
334 |
660 |
|
12 x 4/6 |
RE |
24,5 |
2400 |
528 |
1060 |
|
14 x 1.5/2.5 |
RE |
20,4 |
1050 |
234 |
520 |
|
14 x 2.5/6 |
RE |
21,5 |
1750 |
403 |
750 |
|
16 x 1.5/4 |
RE |
20,0 |
1200 |
276 |
620 |
|
16 x 2.5/6 |
RE |
22,5 |
2000 |
451 |
800 |
|
19 x 1.5/4 |
RE |
22,5 |
1425 |
320 |
660 |
|
19 x 2.5/6 |
RE |
23,5 |
2375 |
523 |
940 |
|
19 x 4/10 |
RE |
27,1 |
3800 |
850 |
1376 |
|
21 x 1.5/6 |
RE |
23,0 |
1575 |
369 |
790 |
|
24 x 1.5/6 |
RE |
25,5 |
1800 |
413 |
850 |
|
24 x 2.5/10 |
RE |
27,6 |
3000 |
696 |
1150 |
|
24 x 4/10 |
RE |
32,3 |
1152 |
1042 |
1813 |
|
30 x 1.5/6 |
RE |
26,5 |
2250 |
499 |
1020 |
|
30 x 2.5/10 |
RE |
29,5 |
3750 |
840 |
1600 |
|
40 x 1.5/10 |
RE |
30,0 |
3000 |
696 |
1280 |
|
40 x 2.5/10 |
RE |
33,0 |
5000 |
1080 |
1660 |
|
52 x 1.5/10 |
RE |
32,0 |
3900 |
869 |
1600 |
|
52 x 2.5/10 |
RE |
35,0 |
6500 |
1368 |
2000 |
|
61 x 1.5/10 |
RE |
33,0 |
4575 |
998 |
2000 |
|
61 x 2.5/10 |
RE |
36,0 |
7625 |
1584 |
2280 |
